如何使用Spring开发和监控线程池服务，spring监控线程池

来源： javaer 分享于  点击 34695 次 点评：57

如何使用Spring开发和监控线程池服务，spring监控线程池


线程池对执行同步或异步的任务很重要。本文展示如何利用Spring开发并监控线程池服务。创建线程池的其他两种方法已讲解过。

使用技术

  • JDK 1.6.0_21
  • Spring 3.0.5
  • Maven 3.0.2

第1步：创建Maven工程

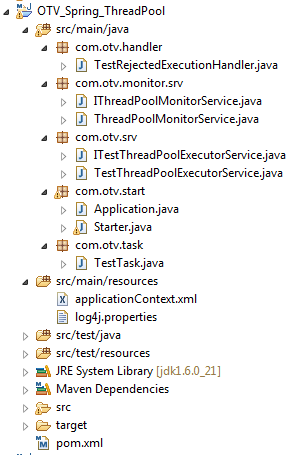

下面是一个maven工程。（可以使用Maven或IDE的插件创建）。

第2步：添加依赖库

将Spring的依赖添加到Maven的pom.xml文件中。

<!-- Spring 3 dependencies -->
<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-core</artifactId>
    <version>${spring.version}</version>
</dependency>
<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-context</artifactId>
    <version>${spring.version}</version>
</dependency>

使用下面的插件创建可执行jar包。

<plugin>
    <groupId>org.apache.maven.plugins</groupId>
    <artifactId>maven-shade-plugin</artifactId>
    <version>1.3.1</version>
    <executions>
        <execution>
            <phase>package</phase>
            <goals>
                <goal>shade</goal>
            </goals>
            <configuration>
                <transformers>
                    <transformer
                        implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
                        <mainClass>com.otv.exe.Application</mainClass>
                    </transformer>
                    <transformer
                        implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">
                        <resource>META-INF/spring.handlers</resource>
                    </transformer>
                    <transformer
                        implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">
                        <resource>META-INF/spring.schemas</resource>
                    </transformer>
                </transformers>
            </configuration>
        </execution>
    </executions>
</plugin>

第3步：创建任务类

创建一个实现Runnable接口的新TestTask类。这个类表示要执行的任务。

package com.otv.task;

import org.apache.log4j.Logger;

/**
 * @author onlinetechvision.com
 * @since 17 Oct 2011
 * @version 1.0.0
 *
 */
public class TestTask implements Runnable {

    private static Logger log = Logger.getLogger(TestTask.class);
    String taskName;

    public TestTask() {
    }

    public TestTask(String taskName) {
        this.taskName = taskName;
    }

    public void run() {
        try {
            log.debug(this.taskName + " : is started.");
            Thread.sleep(10000);
            log.debug(this.taskName + " : is completed.");
        } catch (InterruptedException e) {
            log.error(this.taskName + " : is not completed!");
            e.printStackTrace();
        }
    }

    @Override
    public String toString() {
        return (getTaskName());
    }

    public String getTaskName() {
        return taskName;
    }

    public void setTaskName(String taskName) {
        this.taskName = taskName;
    }
}

第4步：创建TestRejectedExecutionHandler类

TestRejectedExecutionHandler类实现了RejectedExecutionHandler接口。如果没有空闲线程并且队列超出限制，任务会被拒绝。这个类处理被拒绝的任务。

package com.otv.handler;

import java.util.concurrent.RejectedExecutionHandler;
import java.util.concurrent.ThreadPoolExecutor;

import org.apache.log4j.Logger;

/**
 * @author onlinetechvision.com
 * @since 17 Oct 2011
 * @version 1.0.0
 *
 */
public class TestRejectedExecutionHandler implements RejectedExecutionHandler {

    private static Logger log = Logger.getLogger(TestRejectedExecutionHandler.class);

    public void rejectedExecution(Runnable runnable, ThreadPoolExecutor executor) {
        log.debug(runnable.toString() + " : has been rejected");
    }
}

第5步：创建ITestThreadPoolExecutorService接口

创建ITestThreadPoolExecutorService接口。（译者注：这个接口的主要功能是通过设置的参数创建一个线程池）

package com.otv.srv;

import java.util.concurrent.ThreadPoolExecutor;

import com.otv.handler.TestRejectedExecutionHandler;

/**
 * @author onlinetechvision.com
 * @since 17 Oct 2011
 * @version 1.0.0
 *
 */
public interface ITestThreadPoolExecutorService {

    public ThreadPoolExecutor createNewThreadPool();

    public int getCorePoolSize();

    public void setCorePoolSize(int corePoolSize);

    public int getMaxPoolSize();

    public void setMaxPoolSize(int maximumPoolSize);

    public long getKeepAliveTime();

    public void setKeepAliveTime(long keepAliveTime);

    public int getQueueCapacity();

    public void setQueueCapacity(int queueCapacity);

    public TestRejectedExecutionHandler getTestRejectedExecutionHandler();

    public void setTestRejectedExecutionHandler(TestRejectedExecutionHandler testRejectedExecutionHandler);

}

第6步：创建TestThreadPoolExecutorService类

TestThreadPoolExecutorService类实现了ITestThreadPoolExecutorService接口（上一步创建的接口）。这个类可以创建一个新的线程池。

package com.otv.srv;

import java.util.concurrent.ArrayBlockingQueue;
import java.util.concurrent.ThreadPoolExecutor;
import java.util.concurrent.TimeUnit;

import com.otv.handler.TestRejectedExecutionHandler;

/**
 * @author onlinetechvision.com
 * @since 17 Oct 2011
 * @version 1.0.0
 *
 */
public class TestThreadPoolExecutorService implements ITestThreadPoolExecutorService {

    private int  corePoolSize;
    private int  maxPoolSize;
    private long keepAliveTime;
    private int  queueCapacity;
    TestRejectedExecutionHandler testRejectedExecutionHandler;

    public ThreadPoolExecutor createNewThreadPool() {
        ThreadPoolExecutor executor = new ThreadPoolExecutor(getCorePoolSize(),
                                                                getMaxPoolSize(),
                                                                getKeepAliveTime(),
                                                                TimeUnit.SECONDS,
                                                                new ArrayBlockingQueue(getQueueCapacity()),
                                                                getTestRejectedExecutionHandler());
        return executor;
    }

    public int getCorePoolSize() {
        return corePoolSize;
    }

    public void setCorePoolSize(int corePoolSize) {
        this.corePoolSize = corePoolSize;
    }

    public int getMaxPoolSize() {
        return maxPoolSize;
    }

    public void setMaxPoolSize(int maxPoolSize) {
        this.maxPoolSize = maxPoolSize;
    }

    public long getKeepAliveTime() {
        return keepAliveTime;
    }

    public void setKeepAliveTime(long keepAliveTime) {
        this.keepAliveTime = keepAliveTime;
    }

    public int getQueueCapacity() {
        return queueCapacity;
    }

    public void setQueueCapacity(int queueCapacity) {
        this.queueCapacity = queueCapacity;
    }

    public TestRejectedExecutionHandler getTestRejectedExecutionHandler() {
        return testRejectedExecutionHandler;
    }

    public void setTestRejectedExecutionHandler(TestRejectedExecutionHandler testRejectedExecutionHandler) {
        this.testRejectedExecutionHandler = testRejectedExecutionHandler;
    }
}

第7步： 创建IThreadPoolMonitorService接口

创建IThreadPoolMonitorService接口

package com.otv.monitor.srv;

import java.util.concurrent.ThreadPoolExecutor;

public interface IThreadPoolMonitorService extends Runnable {

    public void monitorThreadPool();

    public ThreadPoolExecutor getExecutor();

    public void setExecutor(ThreadPoolExecutor executor);
}

第8步：创建ThreadPoolMonitorService类

ThreadPoolMonitorService类实现了IThreadPoolMonitorService接口。这个类用来监控已创建的线程池。

package com.otv.monitor.srv;

import java.util.concurrent.ThreadPoolExecutor;
import org.apache.log4j.Logger;

/**
 * @author onlinetechvision.com
 * @since 17 Oct 2011
 * @version 1.0.0
 *
 */
public class ThreadPoolMonitorService implements IThreadPoolMonitorService {

    private static Logger log = Logger.getLogger(ThreadPoolMonitorService.class);
    ThreadPoolExecutor executor;
    private long monitoringPeriod;

    public void run() {
        try {
            while (true){
                monitorThreadPool();
                Thread.sleep(monitoringPeriod*1000);
            }
        } catch (Exception e) {
            log.error(e.getMessage());
        }
    }

    public void monitorThreadPool() {
        StringBuffer strBuff = new StringBuffer();
        strBuff.append("CurrentPoolSize : ").append(executor.getPoolSize());
        strBuff.append(" - CorePoolSize : ").append(executor.getCorePoolSize());
        strBuff.append(" - MaximumPoolSize : ").append(executor.getMaximumPoolSize());
        strBuff.append(" - ActiveTaskCount : ").append(executor.getActiveCount());
        strBuff.append(" - CompletedTaskCount : ").append(executor.getCompletedTaskCount());
        strBuff.append(" - TotalTaskCount : ").append(executor.getTaskCount());
        strBuff.append(" - isTerminated : ").append(executor.isTerminated());

        log.debug(strBuff.toString());
    }

    public ThreadPoolExecutor getExecutor() {
        return executor;
    }

    public void setExecutor(ThreadPoolExecutor executor) {
        this.executor = executor;
    }

    public long getMonitoringPeriod() {
        return monitoringPeriod;
    }

    public void setMonitoringPeriod(long monitoringPeriod) {
        this.monitoringPeriod = monitoringPeriod;
    }
}

第9步：创建Starter类

（译者注：这个类内部维护了一个线程池服务（testThreadPoolExecutorService）和一个监控服务（threadPoolMonitorService），然后创建线程池、启动一个单独的线程执行监控服务、通过线程池执行任务）

package com.otv.start;

import java.util.concurrent.ThreadPoolExecutor;

import org.apache.log4j.Logger;

import com.otv.handler.TestRejectedExecutionHandler;
import com.otv.monitor.srv.IThreadPoolMonitorService;
import com.otv.monitor.srv.ThreadPoolMonitorService;
import com.otv.srv.ITestThreadPoolExecutorService;
import com.otv.srv.TestThreadPoolExecutorService;
import com.otv.task.TestTask;

/**
 * @author onlinetechvision.com
 * @since 17 Oct 2011
 * @version 1.0.0
 *
 */
public class Starter {

    private static Logger log = Logger.getLogger(TestRejectedExecutionHandler.class);

    IThreadPoolMonitorService threadPoolMonitorService;
    ITestThreadPoolExecutorService testThreadPoolExecutorService;

    public void start() {

        // A new thread pool is created...
        ThreadPoolExecutor executor = testThreadPoolExecutorService.createNewThreadPool();
        executor.allowCoreThreadTimeOut(true);

        // Created executor is set to ThreadPoolMonitorService...
        threadPoolMonitorService.setExecutor(executor);

        // ThreadPoolMonitorService is started...
        Thread monitor = new Thread(threadPoolMonitorService);
        monitor.start();

        // New tasks are executed...
        for(int i=1;i&lt;10;i++) {
            executor.execute(new TestTask(&quot;Task&quot;+i));
        }

        try {
            Thread.sleep(40000);
        } catch (Exception e)   {
            log.error(e.getMessage());
        }

        for(int i=10;i&lt;19;i++) {
            executor.execute(new TestTask(&quot;Task&quot;+i));
        }

        // executor is shutdown...
        executor.shutdown();
    }

    public IThreadPoolMonitorService getThreadPoolMonitorService() {
        return threadPoolMonitorService;
    }

    public void setThreadPoolMonitorService(IThreadPoolMonitorService threadPoolMonitorService) {
        this.threadPoolMonitorService = threadPoolMonitorService;
    }

    public ITestThreadPoolExecutorService getTestThreadPoolExecutorService() {
        return testThreadPoolExecutorService;
    }

    public void setTestThreadPoolExecutorService(ITestThreadPoolExecutorService testThreadPoolExecutorService) {
        this.testThreadPoolExecutorService = testThreadPoolExecutorService;
    }
}

第10步：创建Application类

创建Application类。这个类运行应用程序。

package com.otv.start;

import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

/**
 * @author onlinetechvision.com
 * @since 17 Oct 2011
 * @version 1.0.0
 *
 */
public class Application {

    public static void main(String[] args) {
       ApplicationContext context = new ClassPathXmlApplicationContext(&quot;applicationContext.xml&quot;);
       Starter starter = (Starter) context.getBean(&quot;Starter&quot;);
       starter.start();
    }
}

第11步：创建applicationContext.xml文件

（译者注：在Spring中注册了上面所创建的类，并提前设置了部分相应的参数，比如将监控服务的监控周期设为5）

<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.springframework.org/schema/beans

http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">

    <!-- Beans Declaration -->
    <bean id="TestTask" class="com.otv.task.TestTask"></bean>
    <bean id="ThreadPoolMonitorService" class="com.otv.monitor.srv.ThreadPoolMonitorService">
        <property name="monitoringPeriod"  value="5" />
    </bean>
    <bean id="TestRejectedExecutionHandler" class="com.otv.handler.TestRejectedExecutionHandler"></bean>
    <bean id="TestThreadPoolExecutorService" class="com.otv.srv.TestThreadPoolExecutorService">
        <property name="corePoolSize"  value="1" />
        <property name="maxPoolSize"   value="3" />
        <property name="keepAliveTime" value="10" />
        <property name="queueCapacity" value="3" />
        <property name="testRejectedExecutionHandler" ref="TestRejectedExecutionHandler" />
    </bean>
    <bean id="Starter" class="com.otv.start.Starter">
        <property name="threadPoolMonitorService" ref="ThreadPoolMonitorService" />
        <property name="testThreadPoolExecutorService" ref="TestThreadPoolExecutorService" />
    </bean>
</beans>

第12步：创建线程池的另一方法

Spring提供的ThreadPoolTaskExecutor类也可以创建线程池。

（译者注：上面通过我们自己创建的TestThreadPoolExecutorService类来设置线程池的各项参数并创建线程池，但实际上Spring也提供了功能类似的类，就是ThreadPoolTaskExecutor。所以也可以使用这种方式创建线程池）

<bean id="threadPoolTaskExecutor" class="org.springframework.scheduling.concurrent.ThreadPoolTaskExecutor">
  <property name="corePoolSize"  value="1" />
  <property name="maxPoolSize"   value="3" />
  <property name="queueCapacity" value="3" />
</bean>

<bean id="testTaskExecutor" class="TestTaskExecutor">
  <constructor-arg ref="threadPoolTaskExecutor" />
</bean>

第13步：构建项目

OTV_Spring_ThreadPool工程被build后，就会产生一个OTV_Spring_ThreadPool-0.0.1-SNAPSHOT.jar包。

第14步：运行工程

OTV_Spring_ThreadPool-0.0.1-SNAPSHOT.jar运行后，输出日志如下：

18.10.2011 20:08:48 DEBUG (TestRejectedExecutionHandler.java:19) - Task7 : has been rejected
18.10.2011 20:08:48 DEBUG (TestRejectedExecutionHandler.java:19) - Task8 : has been rejected
18.10.2011 20:08:48 DEBUG (TestRejectedExecutionHandler.java:19) - Task9 : has been rejected
18.10.2011 20:08:48 DEBUG (TestTask.java:25) - Task1 : is started.
18.10.2011 20:08:48 DEBUG (TestTask.java:25) - Task6 : is started.
18.10.2011 20:08:48 DEBUG (ThreadPoolMonitorService.java:39) - CurrentPoolSize : 3 - CorePoolSize : 1 - MaximumPoolSize : 3 - ActiveTaskCount : 2 - CompletedTaskCount : 0 - TotalTaskCount : 5 - isTerminated : false
18.10.2011 20:08:48 DEBUG (TestTask.java:25) - Task5 : is started.
18.10.2011 20:08:53 DEBUG (ThreadPoolMonitorService.java:39) - CurrentPoolSize : 3 - CorePoolSize : 1 - MaximumPoolSize : 3 - ActiveTaskCount : 3 - CompletedTaskCount : 0 - TotalTaskCount : 6 - isTerminated : false
18.10.2011 20:08:58 DEBUG (TestTask.java:27) - Task6 : is completed.
18.10.2011 20:08:58 DEBUG (TestTask.java:27) - Task1 : is completed.
18.10.2011 20:08:58 DEBUG (TestTask.java:25) - Task3 : is started.
18.10.2011 20:08:58 DEBUG (TestTask.java:25) - Task2 : is started.
18.10.2011 20:08:58 DEBUG (ThreadPoolMonitorService.java:39) - CurrentPoolSize : 3 - CorePoolSize : 1 - MaximumPoolSize : 3 - ActiveTaskCount : 3 - CompletedTaskCount : 2 - TotalTaskCount : 6 - isTerminated : false
18.10.2011 20:08:58 DEBUG (TestTask.java:27) - Task5 : is completed.
18.10.2011 20:08:58 DEBUG (TestTask.java:25) - Task4 : is started.
18.10.2011 20:09:03 DEBUG (ThreadPoolMonitorService.java:39) - CurrentPoolSize : 3 - CorePoolSize : 1 - MaximumPoolSize : 3 - ActiveTaskCount : 3 - CompletedTaskCount : 3 - TotalTaskCount : 6 - isTerminated : false
18.10.2011 20:09:08 DEBUG (TestTask.java:27) - Task2 : is completed.
18.10.2011 20:09:08 DEBUG (TestTask.java:27) - Task3 : is completed.
18.10.2011 20:09:08 DEBUG (TestTask.java:27) - Task4 : is completed.
18.10.2011 20:09:08 DEBUG (ThreadPoolMonitorService.java:39) - CurrentPoolSize : 3 - CorePoolSize : 1 - MaximumPoolSize : 3 - ActiveTaskCount : 0 - CompletedTaskCount : 6 - TotalTaskCount : 6 - isTerminated : false
18.10.2011 20:09:13 DEBUG (ThreadPoolMonitorService.java:39) - CurrentPoolSize : 3 - CorePoolSize : 1 - MaximumPoolSize : 3 - ActiveTaskCount : 0 - CompletedTaskCount : 6 - TotalTaskCount : 6 - isTerminated : false
18.10.2011 20:09:18 DEBUG (ThreadPoolMonitorService.java:39) - CurrentPoolSize : 0 - CorePoolSize : 1 - MaximumPoolSize : 3 - ActiveTaskCount : 0 - CompletedTaskCount : 6 - TotalTaskCount : 6 - isTerminated : false
18.10.2011 20:09:23 DEBUG (ThreadPoolMonitorService.java:39) - CurrentPoolSize : 0 - CorePoolSize : 1 - MaximumPoolSize : 3 - ActiveTaskCount : 0 - CompletedTaskCount : 6 - TotalTaskCount : 6 - isTerminated : false
18.10.2011 20:09:28 DEBUG (TestTask.java:25) - Task10 : is started.
18.10.2011 20:09:28 DEBUG (TestRejectedExecutionHandler.java:19) - Task16 : has been rejected
18.10.2011 20:09:28 DEBUG (TestRejectedExecutionHandler.java:19) - Task17 : has been rejected
18.10.2011 20:09:28 DEBUG (TestRejectedExecutionHandler.java:19) - Task18 : has been rejected
18.10.2011 20:09:28 DEBUG (TestTask.java:25) - Task14 : is started.
18.10.2011 20:09:28 DEBUG (TestTask.java:25) - Task15 : is started.
18.10.2011 20:09:28 DEBUG (ThreadPoolMonitorService.java:39) - CurrentPoolSize : 3 - CorePoolSize : 1 - MaximumPoolSize : 3 - ActiveTaskCount : 3 - CompletedTaskCount : 6 - TotalTaskCount : 12 - isTerminated : false
18.10.2011 20:09:33 DEBUG (ThreadPoolMonitorService.java:39) - CurrentPoolSize : 3 - CorePoolSize : 1 - MaximumPoolSize : 3 - ActiveTaskCount : 3 - CompletedTaskCount : 6 - TotalTaskCount : 12 - isTerminated : false
18.10.2011 20:09:38 DEBUG (TestTask.java:27) - Task10 : is completed.
18.10.2011 20:09:38 DEBUG (TestTask.java:25) - Task11 : is started.
18.10.2011 20:09:38 DEBUG (TestTask.java:27) - Task14 : is completed.
18.10.2011 20:09:38 DEBUG (TestTask.java:27) - Task15 : is completed.
18.10.2011 20:09:38 DEBUG (TestTask.java:25) - Task12 : is started.
18.10.2011 20:09:38 DEBUG (TestTask.java:25) - Task13 : is started.
18.10.2011 20:09:38 DEBUG (ThreadPoolMonitorService.java:39) - CurrentPoolSize : 3 - CorePoolSize : 1 - MaximumPoolSize : 3 - ActiveTaskCount : 3 - CompletedTaskCount : 9 - TotalTaskCount : 12 - isTerminated : false
18.10.2011 20:09:43 DEBUG (ThreadPoolMonitorService.java:39) - CurrentPoolSize : 3 - CorePoolSize : 1 - MaximumPoolSize : 3 - ActiveTaskCount : 3 - CompletedTaskCount : 9 - TotalTaskCount : 12 - isTerminated : false
18.10.2011 20:09:48 DEBUG (TestTask.java:27) - Task11 : is completed.
18.10.2011 20:09:48 DEBUG (TestTask.java:27) - Task13 : is completed.
18.10.2011 20:09:48 DEBUG (TestTask.java:27) - Task12 : is completed.
18.10.2011 20:09:48 DEBUG (ThreadPoolMonitorService.java:39) - CurrentPoolSize : 0 - CorePoolSize : 1 - MaximumPoolSize : 3 - ActiveTaskCount : 0 - CompletedTaskCount : 12 - TotalTaskCount : 12 - isTerminated : true
18.10.2011 20:09:53 DEBUG (ThreadPoolMonitorService.java:39) - CurrentPoolSize : 0 - CorePoolSize : 1 - MaximumPoolSize : 3 - ActiveTaskCount : 0 - CompletedTaskCount : 12 - TotalTaskCount : 12 - isTerminated : true

第15步：下载

  • OTV_Spring_ThreadPool
原文链接： dzone 翻译： Wld5.com - 文 学敏
译文链接： http://www.wld5.com/14163.html
[ 转载请保留原文出处、译者和译文链接。]

相关文章

相关栏目：

相关文章

用户点评
